| xobs | There's still some build weirdness with valentyusb. It has about a 50% chance of not working once synthesized. Tweaking the design fixes it. Hmm... | 00:25 |
|---|---|---|
| xobs | The interesting thing is that these builds *kinda* work, they just lock up after a few packets. I should see if it's Wishbone locking up or something else. | 00:28 |
| xobs | The good news is that the USB<->Wishbone bridge looks entirely doable, and yesterday I got "reading" working (i.e. I was able to transfer 4 bytes back to the host, but the "ADDRESS" field wasn't working right so unless I hardcoded the address they weren't the _correct_ 4 bytes.) | 00:47 |
| *** ukembedded_ has joined #tomu | 01:02 | |
| *** ptotter[m] has quit IRC | 01:10 | |
| *** xobs has quit IRC | 01:10 | |
| *** ukembedded has quit IRC | 01:10 | |
| *** ukembedded_ is now known as ukembedded | 01:10 | |
| *** xobs has joined #tomu | 01:17 | |
| *** ptotter[m] has joined #tomu | 01:18 | |
| mithro | xobs: Normally if you see that behaviour I would say that you are missing a timing constraint | 01:41 |
| xobs | mithro: what do you mean by timing constraint? You mean that I have a clock network that's getting identified as the wrong frequency? | 02:10 |
| mithro | xobs: A clock network which is missing a timing constraint (in ISE it was common to be cause by the constraint not making it through a PLL or other similar primitive) | 02:11 |
| mithro | xobs: I would expose the current state of the import FSM as registers and check their values | 02:13 |
| xobs | What's the import FSM? | 02:19 |
| xobs | I was under the impression that it was the FSM, yeah. I thought maybe it was getting into an "ERROR" state, but I patched it so that it immediately exits that state, but that didn't change things. | 02:19 |
| *** emeb has left #tomu | 03:09 | |
| xobs | mithro: according to the nextpnr output, the timing is all correct. | 03:26 |
| mithro | s/import/important/ | 03:26 |
| xobs | Though some of the async stuff has awfully short timings. | 03:26 |
| *** rohitksingh has joined #tomu | 03:27 | |
| *** rohitksingh has quit IRC | 03:35 | |
| mithro | xobs: My goal for latchup is to help you get the valentyusb hardware rock solid | 03:43 |
| mithro | xobs: I was also pondering seeing if we refactor valentyusb to look like the second diagram -> https://docs.google.com/drawings/d/1olpdWXglPGzJdW_R1DwWviBumlCetyuSZjl-luO_Xe8/edit | 03:44 |
| tpb | Title: valentyusb - Parts - Google Drawings (at docs.google.com) | 03:44 |
| mithro | Anyway home time for me | 03:46 |
| xobs | mithro: that's my goal, too, since I'm planning on a trip to start production right after I get back. | 03:46 |
| mithro | xobs: btw you have a form2 3d printer thingy right? | 03:50 |
| xobs | mithro: yes, that's what I'm using to prototype the cases. | 03:53 |
| mithro | xobs: could you print up some of the little programmers that were recently posted to the Tomu list? | 04:19 |
| mithro | That way I can give out a sheet to Fomu hacker boards with a programming jig | 04:20 |
| mithro | It was designed to be printed with a form 2 | 04:20 |
| mithro | Much more portable then the factory jig :-) | 04:22 |
| xobs | mithro: do you have any idea why "If((byte_counter == 1) or (byte_counter == 2) or (byte_counter == 3) or (byte_counter == 4)" gets turned into "if ((usb_byte_counter == 3'd4)) begin" in Verilog? | 04:26 |
| xobs | Looks like it's a bug in migen: https://github.com/m-labs/migen/issues/137 | 04:36 |
| *** futarisIRCcloud has joined #tomu | 04:44 | |
| xobs | mithro: also, the FSM only gets into the "ERROR" state sometimes. Not always. I think there are two failures here. One where the transfer.py FSM goes into "ERROR", and another that I still haven't figured out. | 05:01 |

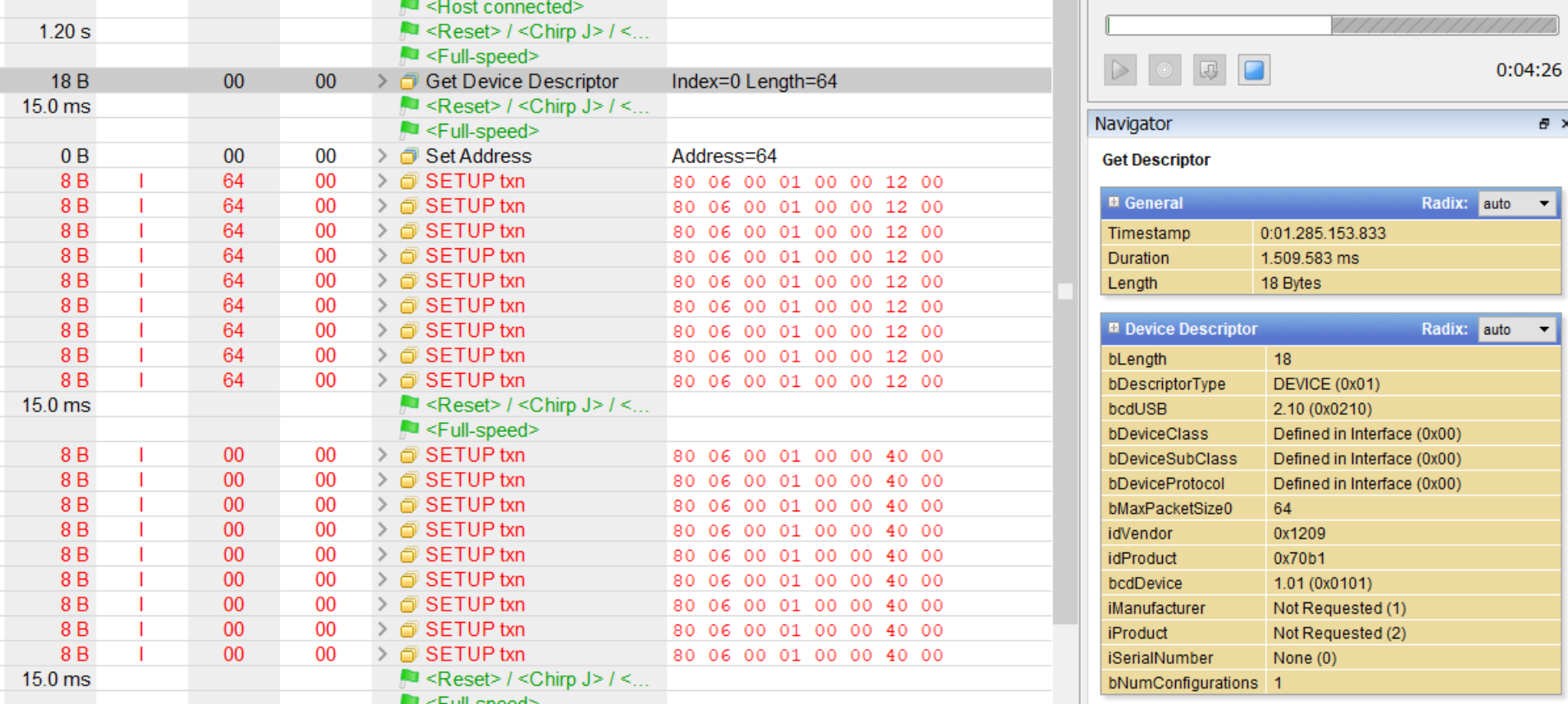

| * xobs uploaded an image: image.png (598KB) < https://matrix.org/_matrix/media/v1/download/matrix.org/LfHVINpgPXElltvNGzwlhbsj > | 05:03 | |
| xobs | The first one/two/three packets work successfully, but then things start to fail afte rthat. | 05:04 |
| *** cdmatter has quit IRC | 05:48 | |
| *** cdmatter has joined #tomu | 05:54 | |
| tnt | xobs: (1) the fact the core doesn't use the IOB registers is often a recipe for random build results. (2) the 'async fifo' fix I really meant as a quick hack to see if that was the issue, but depending on clock drift between host/fomu I'm pretty sure it can still go wrong some times. Ideally the architecture of the RX pipeline should be fixed. | 06:38 |
| xobs | tnt: I'm actually starting to suspect it has to do with the phase difference between the 48 MHz and 12 MHz domains. If I build using "--with-pll", the problem doesn't seem to happen. | 06:39 |
| *** cdmatter has quit IRC | 07:05 | |
| *** cdmatter has joined #tomu | 07:13 | |
| *** rohitksingh has joined #tomu | 07:20 | |
| *** rohitksingh has quit IRC | 08:06 | |
| *** jas4711 has joined #tomu | 08:55 | |
| *** rohitksingh has joined #tomu | 08:56 | |
| *** futarisIRCcloud has quit IRC | 09:13 | |
| *** AmosSam has left #tomu | 09:22 | |
| *** AmosSam has joined #tomu | 09:23 | |
| xobs | I'm reasonably certain the issue is caused by skew, since it goes away when I use the pll. Nextpnr doesn't support cross-domain timing constraints, so that makes sense. | 09:28 |
| xobs | Anyway. I have Wishbone reading working reasonably reliably now! Wishbone writing isn't quite there yet, but I just need to get the sequence right. And litex_server support is delightfully easy. | 09:29 |
| *** AmosSam has left #tomu | 09:35 | |
| *** AmosSam has joined #tomu | 09:36 | |
| *** rohitksingh has quit IRC | 10:14 | |
| *** pollo has quit IRC | 10:18 | |
| *** pollo has joined #tomu | 10:19 | |
| *** AmosSam has left #tomu | 11:34 | |
| *** AmosSam has joined #tomu | 11:46 | |
| *** emeb has joined #tomu | 15:01 | |
| *** rohitksingh has joined #tomu | 15:50 | |
| *** rohitksingh has quit IRC | 16:14 | |
| *** rohitksingh has joined #tomu | 17:04 | |
| *** xkapastel has joined #tomu | 17:07 | |
| *** AmosSam has left #tomu | 17:38 | |
| *** AmosSam has joined #tomu | 17:42 | |
| *** AmosSam has left #tomu | 18:24 | |
| *** rohitksingh has quit IRC | 18:26 | |
| *** rohitksingh has joined #tomu | 18:27 | |
| *** AmosSam has joined #tomu | 18:32 | |
| *** rohitksingh has quit IRC | 19:13 | |
| *** jas4711 has quit IRC | 19:41 | |
| *** jas4711 has joined #tomu | 19:51 | |
| *** emeb has left #tomu | 21:14 | |
| *** futarisIRCcloud has joined #tomu | 23:06 | |
| futarisIRCcloud | xobs: So the bridge is semi working now? We can read from the fomu using the bridge? | 23:15 |
| futarisIRCcloud | https://github.com/potentialventures/cocotb - If anyone here hasn't already seen it. I wonder if we should start writing some testbenches for foboot and the like... | 23:17 |
