| *** tpb has joined #timvideos | 00:00 | |
| shenki | CarlFK: the one from debian | 00:01 |
|---|---|---|
| shenki | 0.0.1-2 | 00:01 |
| shenki | hdmi2usb-mode-switch --mode serial | 00:01 |
| CarlFK | rats. well, mithro just pushed some changes last night hate haven't been packaged yet. https://github.com/timvideos/HDMI2USB-mode-switch/commits/master | 00:02 |
| tpb | Title: Commits · timvideos/HDMI2USB-mode-switch · GitHub (at github.com) | 00:02 |
| CarlFK | If you can figure out how to use that .. which always makes me nervous because I never know what libs are being used by what version | 00:02 |
| *** harshgugale_ has joined #timvideos | 00:03 | |
| *** harshgugale_ has quit IRC | 00:11 | |
| *** futarisIRCcloud has joined #timvideos | 00:11 | |
| shenki | CarlFK: okay. what should I use that to do? | 00:18 |
| *** TheAssassin has quit IRC | 00:37 | |
| CarlFK[m] | Flash the same firmware version, maybe there's something different going on, I'm just randomly guessing now | 00:38 |
| shenki | CarlFK: okay. where do I grab the latest fx2 firmware? | 00:41 |
| *** TheAssassin has joined #timvideos | 00:42 | |
| CarlFK | shenki: the latest doesn't work. | 00:58 |
| CarlFK | oh, fx2 - that is all one blob | 00:59 |
| CarlFK | or it doesn't apply to Opsis | 00:59 |
| shenki | I don't know - that's why I'm asking :) | 01:01 |
| shenki | ah, it loads the actual firmware over i2c. I guess that would make the i2c jumpers important | 01:03 |
| shenki | CarlFK: do you know how the jumpers should be installed? | 01:04 |

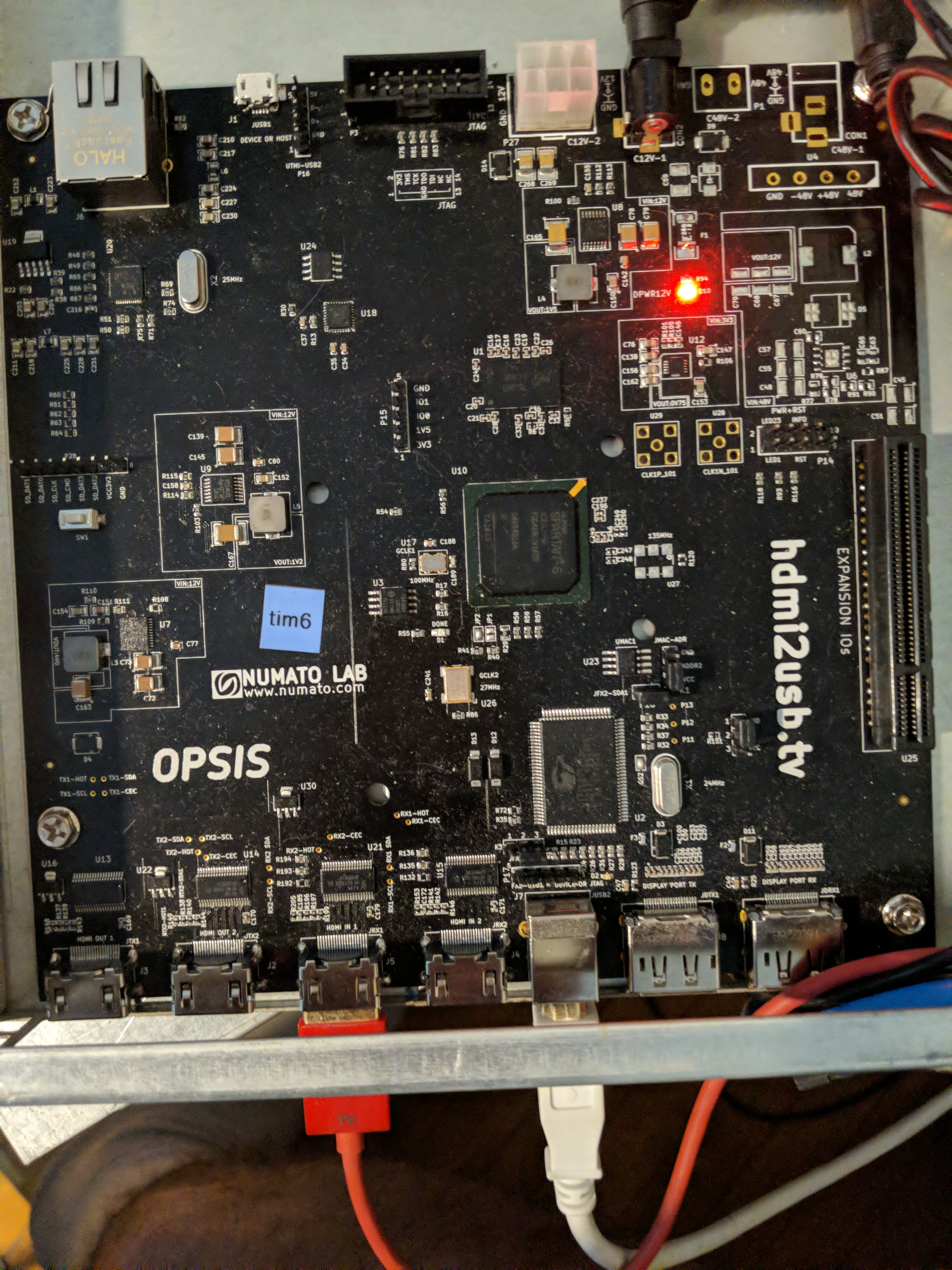

| * CarlFK[m] uploaded an image: VectorImage_2019-03-27_075738.jpg (8104KB) < https://matrix.org/_matrix/media/v1/download/matrix.org/UFOzPEVNjSQDjftykkshWIaG > | 01:05 | |
| CarlFK | let me see if I can find some blue or white jumpers | 01:05 |
| shenki | hrm, the latest firmware doens't build. There's a type missmatch | 01:06 |
| shenki | ah ha. my 'JMAC-ADR' jumper is different | 01:08 |
| shenki | as is the unlabled one next to R151 | 01:08 |
| shenki | and JFX2-RST | 01:09 |
| shenki | They are all the opposite of yours :/ | 01:09 |
| shenki | that fixed it \o/ | 01:13 |
| shenki | i have usb a video device now | 01:13 |
| shenki | H2U 00:01:28>x c p e | 01:14 |
| shenki | Connecting pattern to encoder | 01:14 |
| shenki | but then mplayer times out | 01:15 |
| shenki | no frames | 01:15 |
| CarlFK | yay! | 01:27 |
| CarlFK | er... sec.. let me find what I use to test | 01:27 |
| CarlFK | gst-launch-1.0 v4l2src device=/dev/video0 num-buffers=3 ! jpegdec ! fakesink | 01:32 |
| CarlFK | https://github.com/CarlFK/HDMI2USB-litex-firmware/blob/master/jenkins/tests/ck_jpg.py good/bad results (\ | 01:33 |
| tpb | Title: HDMI2USB-litex-firmware/ck_jpg.py at master · CarlFK/HDMI2USB-litex-firmware · GitHub (at github.com) | 01:33 |
| CarlFK | https://github.com/CarlFK/voctomix-outcasts/blob/master/tests/show_hdmi2usb.sh | 01:34 |
| tpb | Title: voctomix-outcasts/show_hdmi2usb.sh at master · CarlFK/voctomix-outcasts · GitHub (at github.com) | 01:34 |
| futarisIRCcloud | https://www.cnx-software.com/2019/03/27/aller-artix-7-fpga-board-m-2-interface/ | 01:39 |
| shenki | CarlFK: hrm. why doesn't mplayer see data? | 01:45 |
| CarlFK | shenki: I've learned to ignore such questions :p | 01:45 |
| shenki | CarlFK: ok. what do you use to preview the video? | 01:46 |
| CarlFK | https://github.com/CarlFK/voctomix-outcasts/blob/master/tests/show_hdmi2usb.sh | 01:46 |
| tpb | Title: voctomix-outcasts/show_hdmi2usb.sh at master · CarlFK/voctomix-outcasts · GitHub (at github.com) | 01:46 |
| CarlFK | gst (gstreamer) is what feeds voctomix, so as long as that works, we can record talks. | 01:46 |

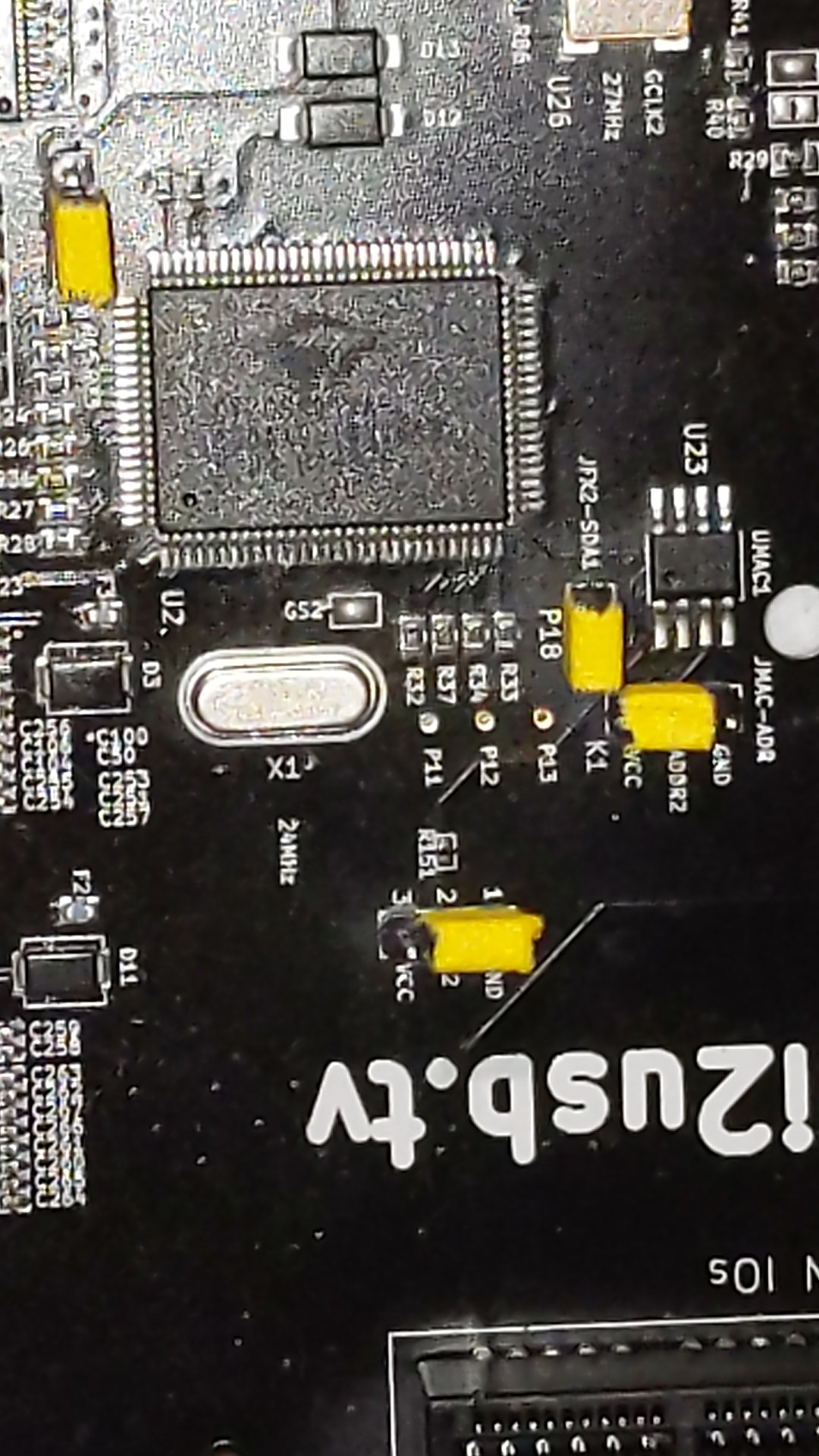

| * CarlFK[m] uploaded an image: 20190327_211025.jpg (791KB) < https://matrix.org/_matrix/media/v1/download/matrix.org/uFbljFqmLEdeAjJRZzGPgsKc > | 02:18 | |
| *** rohitksingh_work has joined #timvideos | 04:19 | |
| futarisIRCcloud | mithro: https://github.com/zephyrproject-rtos/zephyr/pull/14915 | 05:04 |
| tpb | Title: riscv32: LiteX VexRiscv support by mateusz-holenko · Pull Request #14915 · zephyrproject-rtos/zephyr · GitHub (at github.com) | 05:04 |
| *** thaytan has quit IRC | 05:22 | |
| futarisIRCcloud | tinyfpga: https://twitter.com/TinyFPGA/status/1111135447147663360 - Cool. | 05:30 |
| tinyfpga | futarisIRCcloud: :) | 05:31 |
| futarisIRCcloud | rohitksingh_work: https://www.reddit.com/r/FPGA/comments/b69n4i/any_recs_for_a_pcie_fpga_board_for_high_speed/ejix6ih/ | 06:12 |
| tpb | Title: Any recs for a PCIe FPGA board for High Speed logging (Linux Kernel development) : FPGA (at www.reddit.com) | 06:12 |
| rohitksingh_work | futarisIRCcloud: thanks! I've shared it with Numato guys. The PCIe Gen2 issue has been already resolved afaik by simply upgrading to higher-speed grade of same FPGA. Plus they are going to try out Artix 200T on Aller in few days from now. The FPGA footprint is same, plus 200T will have better thermal disspation due to low thermal impedance between heat-sink and the silicon die. | 06:25 |
| rohitksingh_work | RAM capacity will be addressed in a future revision of Aller in ~2 months | 06:25 |
| *** rohitksingh_work has quit IRC | 06:32 | |
| *** rohitksingh_work has joined #timvideos | 06:45 | |
| *** rohitksingh_work has quit IRC | 06:49 | |
| *** rohitksingh_work has joined #timvideos | 07:47 | |
| *** rohitksingh_wor1 has joined #timvideos | 07:49 | |
| *** rohitksingh_work has quit IRC | 07:52 | |
| *** rohitksingh_work has joined #timvideos | 07:53 | |
| *** rohitksingh_wor1 has quit IRC | 07:54 | |
| *** rohitksingh_wor1 has joined #timvideos | 09:53 | |
| *** rohitksingh_work has quit IRC | 09:56 | |
| *** thaytan has joined #timvideos | 11:38 | |
| *** ChanServ sets mode: +v thaytan | 11:38 | |
| *** rohitksingh_wor1 has quit IRC | 13:02 | |
| *** rohitksingh has joined #timvideos | 13:43 | |
| *** V has joined #timvideos | 13:55 | |
| *** V is now known as Guest67220 | 13:56 | |
| *** futarisIRCcloud has quit IRC | 14:19 | |
| *** Sarthak has joined #timvideos | 14:37 | |
| *** rohitksingh has quit IRC | 15:21 | |
| *** Sarthak has quit IRC | 15:52 | |
| *** rohitksingh has joined #timvideos | 16:10 | |
| *** rohitksingh has quit IRC | 16:52 | |
| *** rohitksingh has joined #timvideos | 16:52 | |
| *** rohitksingh has quit IRC | 19:22 | |
| *** futarisIRCcloud has joined #timvideos | 23:23 | |
| *** mauz555 has joined #timvideos | 23:31 | |
| *** mauz555 has quit IRC | 23:35 | |
| *** mauz555 has joined #timvideos | 23:43 | |
| *** mauz555 has quit IRC | 23:53 | |
