| *** tpb has joined #timvideos | 00:00 | |
| felix_ | ah, ok, it seems to be fixed in the other repo | 01:44 |
|---|---|---|
| felix_ | i'll try that now | 01:44 |
| *** CarlFK has joined #timvideos | 01:51 | |
| *** ChanServ sets mode: +v CarlFK | 01:51 | |
| CarlFK[m] | Kamilion (IRC): URL of your ebay store or better URL of the 20g ssd things | 01:53 |
| mithro | 20g SSD things? | 01:53 |
| Kamilion | https://www.ebay.com/itm/Intel-SSD-310-40GB-mSATA-Solid-State-Drive-SSDMAEMC040G2-with-adapter/231890481570 | 01:54 |
| Kamilion | 'make offer' button | 01:54 |
| CarlFK[m] | thanks | 01:55 |
| Kamilion | mithro: used mSATA SSDs on tyan brand SATA carriers | 01:56 |
| CarlFK[m] | drops the time to build a box from 20-30 min down to under 5 min | 01:57 |
| *** Kripton has joined #timvideos | 01:57 | |
| CarlFK[m] | and the boot in about 10 seconds, down from a min | 01:57 |
| Kamilion | CarlFK[m]: double sided sticky tape is your friend. https://photos.app.goo.gl/AO9J39uFhljdNRsE3 | 01:57 |
| Kamilion | ask about 'empty' carrier adapters too, we've got so many I'm sure a deal can be hatched | 01:58 |
| Kamilion | that image shows a 250GB micron mSATA drive I picked up off amazon for $59 installed in the carrier. | 01:59 |
| CarlFK[m] | nice. | 02:01 |
| Kamilion | https://photos.app.goo.gl/nOCc0ntyxgI11WzN2 | 02:01 |
| Kamilion | this one i got for my dad | 02:01 |
| CarlFK[m] | I personally can only use 5-10. | 02:01 |
| CarlFK[m] | in the first pic, what is the 8 brassy things on a rf shield looking thing? | 02:02 |
| Kamilion | 8 brassy things? | 02:02 |
| Kamilion | ... uhhh... I dunno | 02:03 |
| Kamilion | There shouldn't be any RF sheilds in that | 02:03 |
| Kamilion | oh, the coolermaster heatsink. | 02:03 |
| Kamilion | CarlFK[m]: https://www.newegg.com/Product/Product.aspx?Item=N82E16835103099 | 02:03 |
| CarlFK[m] | ah | 02:03 |
| tpb | Title: COOLER MASTER Hyper 212 EVO RR-212E-20PK-R2 Continuous Direct Contact 120mm Sleeve CPU Cooler Compatible with latest Intel 201113661155 and AMD FM1FM2AM3 - Newegg.com (at www.newegg.com) | 02:03 |
| Kamilion | "where do those carriers come from?" | 02:04 |
| Kamilion | https://photos.app.goo.gl/0P2p4v7AGqFcc55I2 | 02:04 |
| * Kamilion points to the right of the copper cooler | 02:04 | |
| Kamilion | they're supposed to be for these 1U server chassis. | 02:05 |
| CarlFK[m] | yeah, that | 02:05 |
| Kamilion | but we've scrapped all of that line of machines; and the only thing that remains is their mSATA carriers now... lol | 02:05 |
| Kamilion | they'd probably sell you about 25 of 'em for $2.50 each, without the SSD | 02:07 |
| CarlFK[m] | the mb had a place to plug them in? | 02:07 |
| Kamilion | two actually | 02:07 |
| Kamilion | but the adapter covers over the second one | 02:07 |
| Kamilion | *shrug* | 02:07 |
| CarlFK[m] | huh. the gender is backwards... | 02:07 |
| Kamilion | yes, the motherboard has the female connector, can actually stick any 2.5" SSD on it | 02:08 |
| CarlFK[m] | I bought a $50 lenovo Twist laptop .. "no screen or hard drive" | 02:09 |
| Kamilion | one of my favorite tricks is to pull a samsung evo out of it's casing and shove it right on the header | 02:09 |
| Kamilion | https://us.hardware.info/reviews/5798/3/samsung-850-evo-ssd-120gb250gb500gb1tb-review-best-ssd-for-the-money-four-models-120-gb-250-gb-500-gb-andn1-tb | 02:09 |
| tpb | Title: Samsung 850 Evo SSD 120GB/250GB/500GB/1TB review: best SSD for the money? - Four models: 120 GB, 250 GB, 500 GB, and 1 TB (at us.hardware.info) | 02:09 |
| Kamilion | https://content.hwigroup.net/images/products_xl/266760/3/samsung-850-evo-250gb.jpg | 02:09 |
| CarlFK[m] | lenovo Twist all came with ssd and optional spinny disk | 02:09 |
| CarlFK[m] | so I was expecting an ssd and a keyboard | 02:09 |
| CarlFK[m] | the ssd was gone. | 02:09 |
| CarlFK[m] | im trying to figure out how much to fight for it. | 02:10 |
| CarlFK[m] | im sure it is an honest mistake and I should just let it go | 02:10 |
| CarlFK[m] | I was thinking of telling him to buy an ssd from you but the $15 shipping kinda messes that deal | 02:10 |
| Kamilion | any time you see a large shipping fee; that's generally to cater to europeans; who pay VAT on the price, but not the shipping. | 02:11 |
| Kamilion | so a lot of vendors cheat by 'discounting' the product and doubling the handling charge | 02:11 |
| Kamilion | not uncommon to see $99 shipping for an item marked $30 that should be closer to $90 | 02:13 |
| Kamilion | don't think that applies in this situation; but just wanted to explain that if you ever wondered WTF was going on with crazy shipping prices | 02:13 |
| CarlFK[m] | neat | 02:16 |
| CarlFK[m] | I can also see that the labor of dealing with inventory and shipping things isn't free, so may as well make a few bucks on that process too | 02:18 |
| Kamilion | well, ebay, in specific, lets you assign two fields separate, shipping, and handling, and combines them to show the customer. | 02:19 |
| Kamilion | if you tell ebay you're using a supported carrier, and provide weights and dimensions; ebay will use the customer's zip/postal code to automatically calculate shipping. | 02:20 |
| Kamilion | so what you see is what you get, re: final payment | 02:20 |
| Kamilion | instead of, say, calculating or recalculating shipping costs during the checkout process | 02:21 |
| Kamilion | and suddenly now you're paying $8 less in shipping, or demands $12 more for your postal zone... ETC | 02:22 |
| Kamilion | definitely one of the more well thought out things about ebay/buyitnow-clones such as aliexpress, dealextreme, and other aggregators | 02:23 |
| CarlFK[m] | yeah - and you can sort on total cost too. love that. | 02:30 |
| *** samsagaz has quit IRC | 03:10 | |
| *** samsagaz has joined #timvideos | 03:10 | |
| *** futarisIRCcloud has joined #timvideos | 03:14 | |
| *** rohitksingh_work has joined #timvideos | 03:46 | |
| *** sb0 has quit IRC | 03:54 | |
| *** sb0 has joined #timvideos | 04:42 | |
| *** springermac has quit IRC | 06:56 | |
| *** springermac has joined #timvideos | 06:57 | |
| *** bjoernq has joined #timvideos | 07:10 | |
| felix_ | _florent_: it seems that the a7 ddr3 phy doesn't work on the ac701, since write leveling isn't implemented yet and the sodimm on the board needs that due to the fly-by topology | 07:29 |
| felix_ | the best setting i tried still had Memtest bus failed: 45/256 errors | 07:30 |
| *** rohitksingh_work has quit IRC | 08:16 | |
| _florent_ | felix_: on artix7, we don't have odelay, so it's not possible to do write leveling the way we are doing it on kintex7, we are then just shifting the dqs_clk | 08:25 |
| _florent_ | felix_: if you want to find timing for the ddr3, there are scripts for that: | 08:26 |
| _florent_ | felix_: first create a design similar to this one for the ac701: https://github.com/enjoy-digital/arty-soc/blob/master/arty_ddr3.py | 08:26 |
| tpb | Title: arty-soc/arty_ddr3.py at master · enjoy-digital/arty-soc · GitHub (at github.com) | 08:26 |
| _florent_ | felix_: it's important to keep l2_cache to the minimum | 08:27 |
| _florent_ | felix_: then you can use this script to find all working bitslip/delay: https://github.com/enjoy-digital/arty-soc/blob/master/test/test_sdram.py | 08:28 |
| tpb | Title: arty-soc/test_sdram.py at master · enjoy-digital/arty-soc · GitHub (at github.com) | 08:28 |
| _florent_ | felix_: now if the script is not able to find a working configuration, you can play with the phase here: | 08:29 |
| _florent_ | felix_: https://github.com/enjoy-digital/arty-soc/blob/master/arty_base.py#L74 | 08:30 |
| tpb | Title: arty-soc/arty_base.py at master · enjoy-digital/arty-soc · GitHub (at github.com) | 08:30 |
| _florent_ | felix_: or since the ac701 has 8 ddr3 modules, you can try to reduce it to 2 modules first (for that just keep the first 16 dq, 2 first dm/dqs_p/dqs_n) and once working, increase the number of modules | 08:32 |
| *** futarisIRCcloud has quit IRC | 08:44 | |
| felix_ | ok, i'll try that | 09:43 |
| cr1901_modern | _florent_: Taking a quick glance over your litesdcard repo. How do you guarantee that the correct data will be sent to the SD card clock domain with MultiReg alone? | 09:48 |
| cr1901_modern | AIUI, MultiReg isn't enough to xfer multiple bits to another domain unless its gray-encoded | 09:49 |

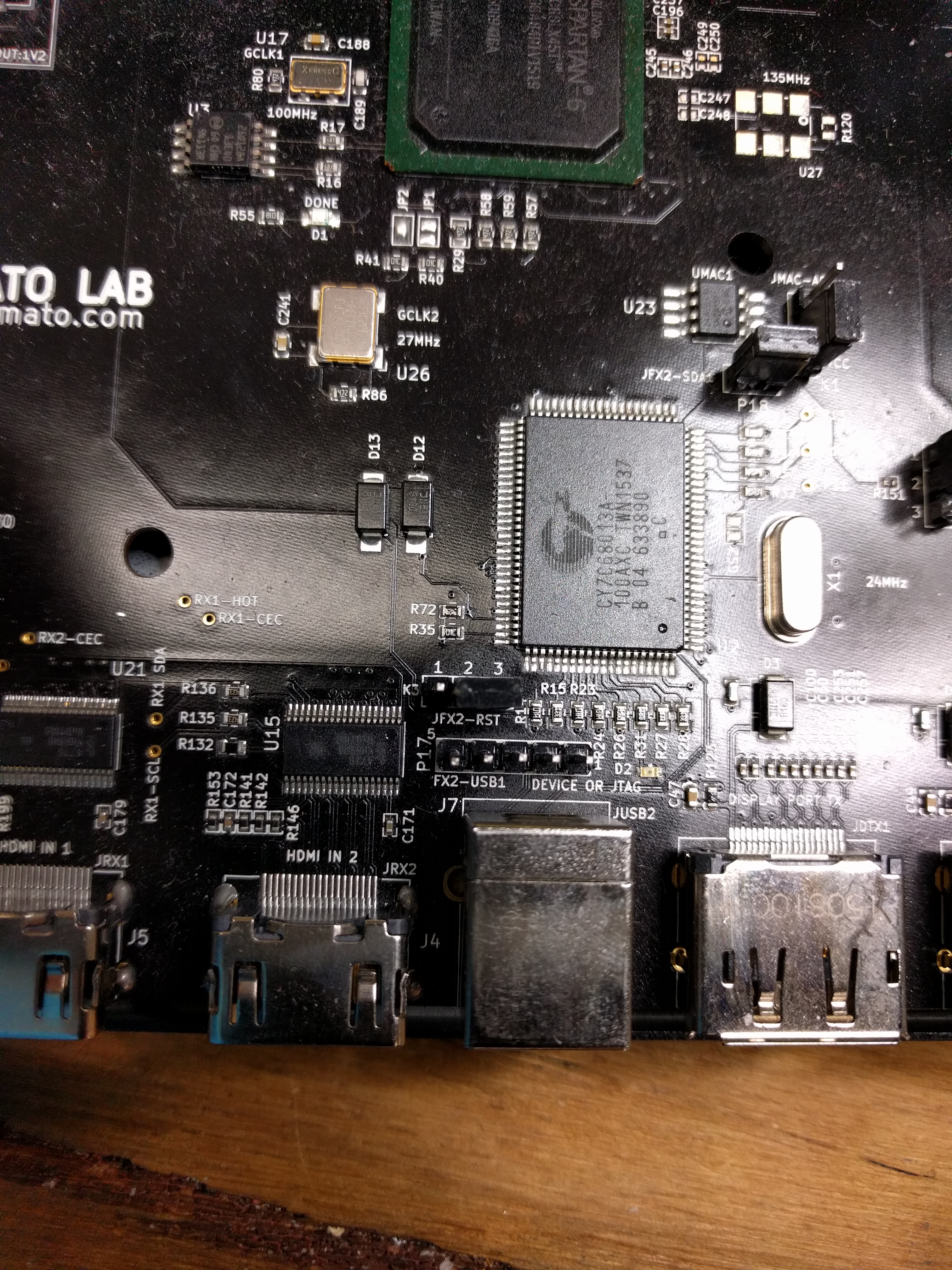

| * CarlFK[m] uploaded an image: VectorImage_2018-01-12_092950.jpg (6693KB) <https://matrix.org/_matrix/media/v1/download/matrix.org/IxTipacZCBISCoUFxnnFTrqq> | 10:33 | |
| CarlFK[m] | mithro: this header is a little different. Any idea where specs are? | 10:34 |
| mithro | Have to look at the schematic | 10:35 |
| mithro | CarlFK[m]: file:///home/tansell/Pictures/Screenshot%20from%202018-01-12%2021-34-05.png https://usercontent.irccloud-cdn.com/file/7ZvxwLeC/image.png | 10:37 |
| CarlFK[m] | Tx | 10:38 |
| *** samsagaz has quit IRC | 11:07 | |
| CarlFK[m] | mithro: do you think we need to bother running the 5 volts USB line to the ups is ever? | 11:15 |
| CarlFK[m] | It seems to work ok with it just disconnected at all times | 11:16 |
| mithro | not sure? | 11:16 |
| _florent_ | cr1901_modern: i don't think there are Multiregs on the datapath, can you point to the code that make you thinking that? | 11:18 |
| cr1901_modern | _florent_: https://github.com/enjoy-digital/litesdcard/blob/master/litesdcard/core.py#L46-L56 | 12:05 |
| tpb | Title: litesdcard/core.py at master · enjoy-digital/litesdcard · GitHub (at github.com) | 12:05 |
| *** sb0 has quit IRC | 12:47 | |
| CarlFK[m] | http://paste.ubuntu.com/26371731/ http://paste.ubuntu.com/26371732/ | 13:00 |
| tpb | Title: Ubuntu Pastebin (at paste.ubuntu.com) | 13:00 |
| *** sb0 has joined #timvideos | 13:11 | |
| felix_ | _florent_: i ran test_sdram.py and got this https://paste.fedoraproject.org/paste/M2sQzZ7rhrgEDyznk9XZBA | 13:15 |
| tpb | Title: Untitled - Modern Paste (at paste.fedoraproject.org) | 13:15 |
| felix_ | only thing that i changed in the adapted arty_ddr3.py was the l2 size which i changed to 0, since it didn't build with the original value | 13:17 |
| *** CarlFK has quit IRC | 13:39 | |
| *** CarlFK has joined #timvideos | 14:15 | |
| *** ChanServ sets mode: +v CarlFK | 14:15 | |
| *** springermac has quit IRC | 14:31 | |
| _florent_ | cr1901_modern: for the sys to sd side, we are assuming these signals are stabilized before being used | 15:15 |
| _florent_ | cr1901_modern: for the sd to sys side, i have to double check | 15:15 |
| _florent_ | felix_: l2_size should not be 0, but the minimal value that allow compilation | 15:20 |
| _florent_ | felix_: it will be a power or 2 | 15:21 |
| _florent_ | felix_: power of 2 | 15:21 |
| *** Ishan_Bansal has quit IRC | 16:39 | |
| *** deeprave has quit IRC | 16:39 | |
| *** deeprave has joined #timvideos | 16:40 | |
| *** Ishan_Bansal has joined #timvideos | 16:40 | |
| *** Kripton has quit IRC | 19:49 | |
| *** Kripton has joined #timvideos | 19:53 | |
| *** puck has quit IRC | 21:17 | |
| *** puck has joined #timvideos | 21:21 | |
| felix_ | _florent_: ok, i'll try that | 23:01 |
| *** CarlFK has quit IRC | 23:04 | |
| mithro | cr1901_modern: Heyo - how is the sdcard stuff going? | 23:14 |
| mithro | _florent_: The ddr init code in your Python script seems to be the old form from before your most recent changes to make the Kintex+Artix closer? | 23:15 |
| *** springermac has joined #timvideos | 23:57 | |
