| *** tpb has joined #timvideos | 00:00 | |
| CarlFK[m] | no, not yay. that should be 1280x720 | 00:07 |
|---|---|---|
| CarlFK[m] | output1: [email protected] from pattern (underflows: 1842238) | 00:15 |
| CarlFK[m] | I think underflows wrapped | 00:15 |
| CarlFK[m] | input1: 10x720 (@74.24 MHz) (capturing) | 00:16 |
| CarlFK[m] | dvisampler0: IDELAY busy timeout (%hx %hx %hx) | 00:47 |
| CarlFK[m] | I'm guessing that should have hex thins | 00:47 |
| CarlFK[m] | dvisampler0: phase init failed | 00:47 |
| CarlFK[m] | dvisampler0: giving up | 00:47 |
| CarlFK[m] | thats new | 00:47 |
| mithro | CarlFK[m]: 65MHz pixel clock definitely looks like 1024x768 | 01:41 |
| mithro | CarlFK[m]: 720p is normally 75MHz | 01:41 |
| *** [d__d] has quit IRC | 02:20 | |
| *** puck` has joined #timvideos | 02:21 | |
| *** puck` is now known as Guest4752 | 02:21 | |
| *** mattoliverau_ has joined #timvideos | 02:23 | |
| *** CarlFK has quit IRC | 02:24 | |
| *** mattoliverau has quit IRC | 02:24 | |
| *** puck has quit IRC | 02:24 | |
| *** mattoliverau_ is now known as mattoliverau | 02:25 | |
| *** [d__d] has joined #timvideos | 02:29 | |
| mithro | https://www.amazon.com/HDML-Cloner-supported-Schedule-recording-supported/dp/B01LX22X2T/ref=sr_1_5_sspa | 02:36 |
| CarlFK[m] | mithro (IRC): the vga-hdmi box was set to 1024x768 | 02:44 |
| CarlFK[m] | I put that to 720p@60 | 02:45 |
| CarlFK[m] | grumble. | 02:46 |
| CarlFK[m] | dinner time bbl | 02:46 |
| *** samsagaz__ has joined #timvideos | 02:58 | |
| *** samsagaz_ has quit IRC | 03:00 | |
| *** rohitksingh_work has joined #timvideos | 03:33 | |
| mithro | CarlFK[m]: Roughly, 65MHz ~= 1024x768, 720p60 ~= 75MHz, 1080p60 ~= 150MHz | 03:53 |
| *** CarlFK has joined #timvideos | 04:05 | |
| *** ChanServ sets mode: +v CarlFK | 04:05 | |
| *** samsagaz__ has quit IRC | 04:08 | |
| CarlFK[m] | mithro - ah, I got confused with .. the fps or refresh rate - whatever the 60 is in: mode 9: 1280x720 @60Hz | 04:14 |
| mithro | CarlFK[m]: FYI - the (@65.01 MHz) is referring to the pixel clock not the refresh rate... | 04:22 |
| *** sb0 has quit IRC | 04:23 | |
| mithro | CarlFK[m]: You should be able to detect a pixel clock of up to like 800MHz which is like 4k | 04:24 |
| CarlFK[m] | mithro (IRC): did tumbleweed list what revs had a bug? so that I can try that rev and maybe live with the bug? | 04:25 |
| CarlFK[m] | like I don't need 2 inputs | 04:25 |
| mithro | CarlFK[m]: No, I think he was naughty and didn't record a bug | 04:26 |
| CarlFK | rats | 04:26 |

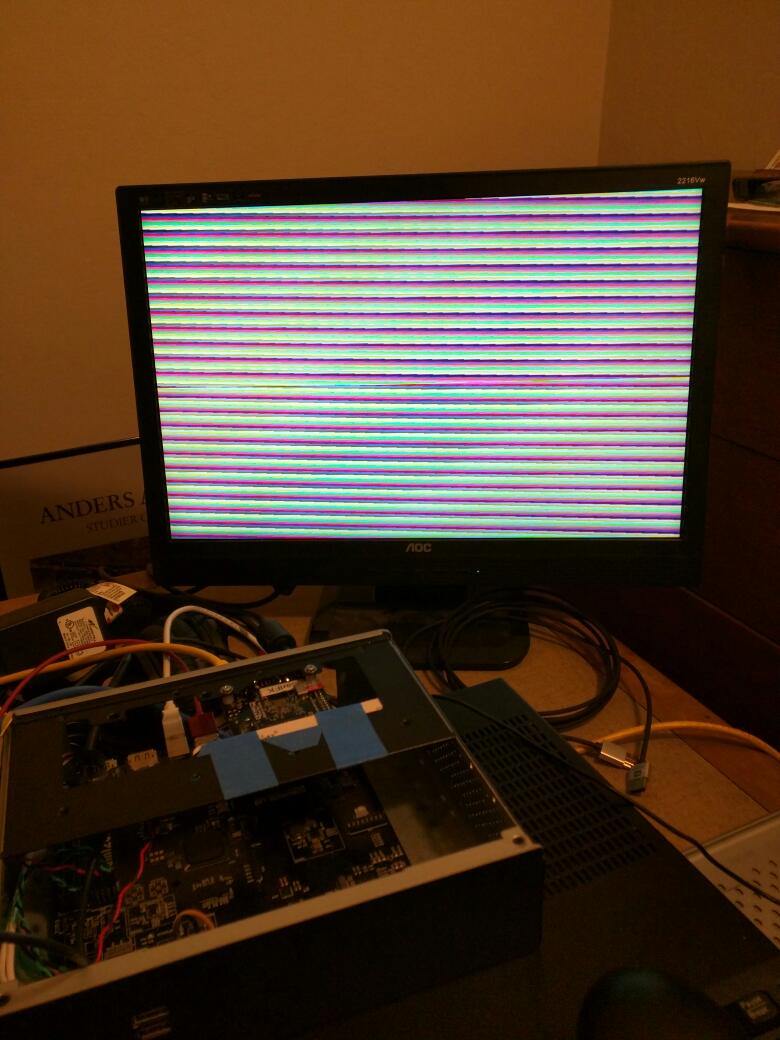

| * CarlFK[m] uploaded an image: VectorImage_2017-11-30_082609.jpg (97KB) <https://matrix.org/_matrix/media/v1/download/matrix.org/lcwbYJvvlwkDpiHRYxRpwyvd> | 04:28 | |
| CarlFK[m] | that's the vga box color bars | 04:28 |
| CarlFK[m] | er, that's what both the Opsis and Atlys do with the vga box color bars | 04:29 |
| CarlFK[m] | im guessing there is a setting on the box I need to flip | 04:29 |

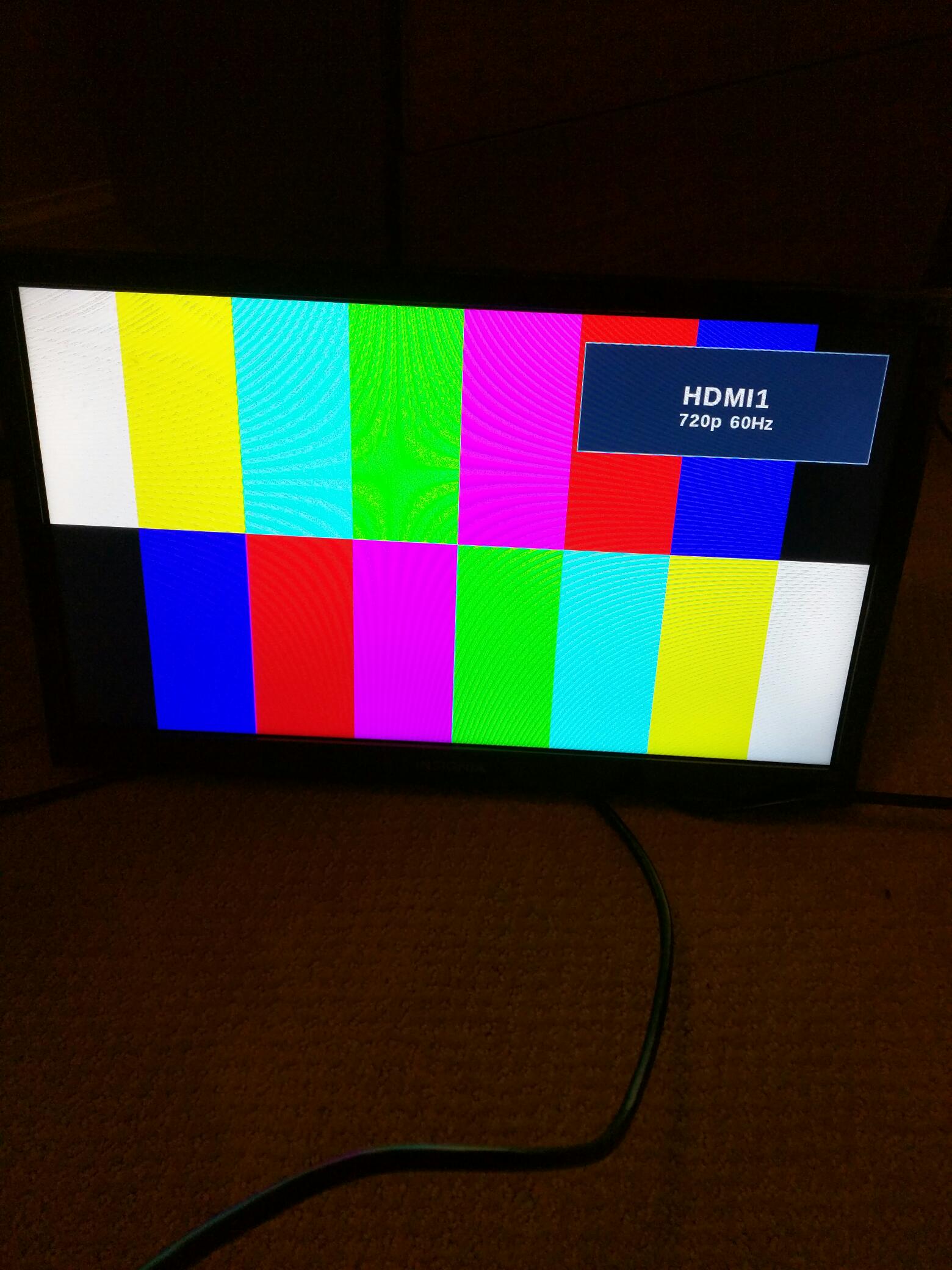

| * CarlFK[m] uploaded an image: VectorImage_2017-11-30_082925.jpg (263KB) <https://matrix.org/_matrix/media/v1/download/matrix.org/OuiDOAInhXdlfRqslQZflKoi> | 04:31 | |
| CarlFK[m] | mom;s tv - displaying what it sees: 720p 60hz | 04:32 |
| CarlFK[m] | fixed it | 04:34 |
| CarlFK[m] | "hdmi data on/off/auto" turned it off. | 04:34 |
| mithro | Yes, we don't decode HDMI data | 04:41 |
| mithro | That would cause what you are seeing | 04:41 |
| CarlFK[m] | whew. I was worried my new rock solid device was not as rock solid as I thought | 04:43 |
| CarlFK[m] | I was also using it to test 'does this firmware rev work' and getting all sorts of confused. | 04:44 |
| felix_ | after (not too successfully) trying to get some professional-ish equipment working, i finally understand why people could want to be able to get detailed information about video formats and timings on interfaces (except for just wanting to know all the details about things). why is the professional and proprietary stuff i have here so bad from user perspective in terms of usability? /o\ | 04:45 |
| felix_ | (currently trying to get a decklink card working in a test setup) | 04:46 |
| CarlFK[m] | felix_ (IRC): any chance it is this one? | 04:47 |
| CarlFK[m] | https://www.blackmagicdesign.com/products/decklink/techspecs/W-DLK-06 | 04:47 |
| tpb | Title: Blackmagic Design: DeckLink Tech Specs (at www.blackmagicdesign.com) | 04:47 |
| CarlFK[m] | wait.. that doesn't really show the one .. | 04:47 |
| CarlFK[m] | "DeckLink Mini Recorder" | 04:48 |
| felix_ | no, the decklink 4k pro card (dual 12g sdi in and out) that is somehow not listed any more on their website (the 8k pro looks very similar, but has 4 bidirectional 12g sdi ports) | 04:50 |
| mithro | felix_: https://docs.google.com/spreadsheets/d/1JvBYgGgWN35BF30zXw76Jp7c4_SLcykoOMWNcuDTUv4/edit#gid=720646227 | 05:01 |
| tpb | Title: Graphics Resolutions and Bandwidth - Google Sheets (at docs.google.com) | 05:01 |
| felix_ | i meant with detailed information to be able to debug what actually happens on the wire | 05:03 |
| CarlFK[m] | mithro (IRC): git describe: v0.0.3-1045-c9-dirty looks ok. tested with 1 in and 2 hdmi out + encoder out | 05:31 |
| CarlFK[m] | there are 4 revs after that, but the dont contain opsis/hdmi2usb/lm32/image-gateware+bios+firmware.bin | 05:36 |
| *** sb0 has joined #timvideos | 06:09 | |
| CarlFK[m] | and if I swtich to mode 11 no more underflows: output0: [email protected] from input1 (underflows: 0) | 06:18 |
| mithro | CarlFK[m]: You get underflows with [email protected]? | 06:19 |
| CarlFK[m] | mithro (IRC): yes | 06:20 |
| CarlFK[m] | output0: [email protected] from input1 (underflows: 295691) | 06:20 |
| mithro | CarlFK[m]: That is what I seem to recall the current state was | 06:20 |
| CarlFK[m] | er, that's wen I changed it | 06:20 |
| CarlFK[m] | output0: [email protected] from input1 (underflows: 845718) | 06:20 |
| mithro | Hrm? | 06:24 |
| CarlFK[m] | nothing really - just what I cut/pasted the first time was a little confusing | 06:24 |
| *** sb0_ has joined #timvideos | 06:25 | |
| *** sb0_ has quit IRC | 06:28 | |
| *** sb0 has quit IRC | 06:29 | |
| shorne_ | shenki: presenting on OpenRISC and my SMP work | 07:59 |
| shorne_ | posted the slides here | 07:59 |
| shorne_ | https://elinux.org/Japan_Technical_Jamboree_63 | 07:59 |
| tpb | Title: Japan Technical Jamboree 63 - eLinux.org (at elinux.org) | 07:59 |
| shorne_ | well. the same website, slides are up now | 07:59 |
| tumbleweed | CarlFK[m]: I said which rev it was introduced in, you can work it out from that | 08:32 |
| *** shorne_ is now known as shorne | 09:20 | |
| *** rohitksingh_work has quit IRC | 11:30 | |
| *** rohitksingh_work has joined #timvideos | 11:32 | |
| *** rohitksingh_work has quit IRC | 12:29 | |
| *** Peetz0r is now known as test_jelle_test | 13:20 | |
| *** test_jelle_test is now known as Peetz0r | 13:20 | |
| *** rohitksingh has joined #timvideos | 14:45 | |
| *** rohitksingh has quit IRC | 14:47 | |
| CarlFK[m] | Kamilion (IRC): Can I swing by your office and get a plain old vga cable? | 20:12 |
| CarlFK[m] | I'll be driving past around 1:30 | 20:12 |
| CarlFK[m] | dmi2usb-mode-switch --mode=operational ==> raise NotImplemented("Not yet finished...") | 20:28 |
| CarlFK[m] | 20:28 | |
| CarlFK[m] | What is that spozed to do? | 20:28 |
| tumbleweed | to put it back into the normal mode it boots up in | 21:09 |
| tumbleweed | rebooting has the same effect (assuming the jumbers are in default position) | 21:09 |

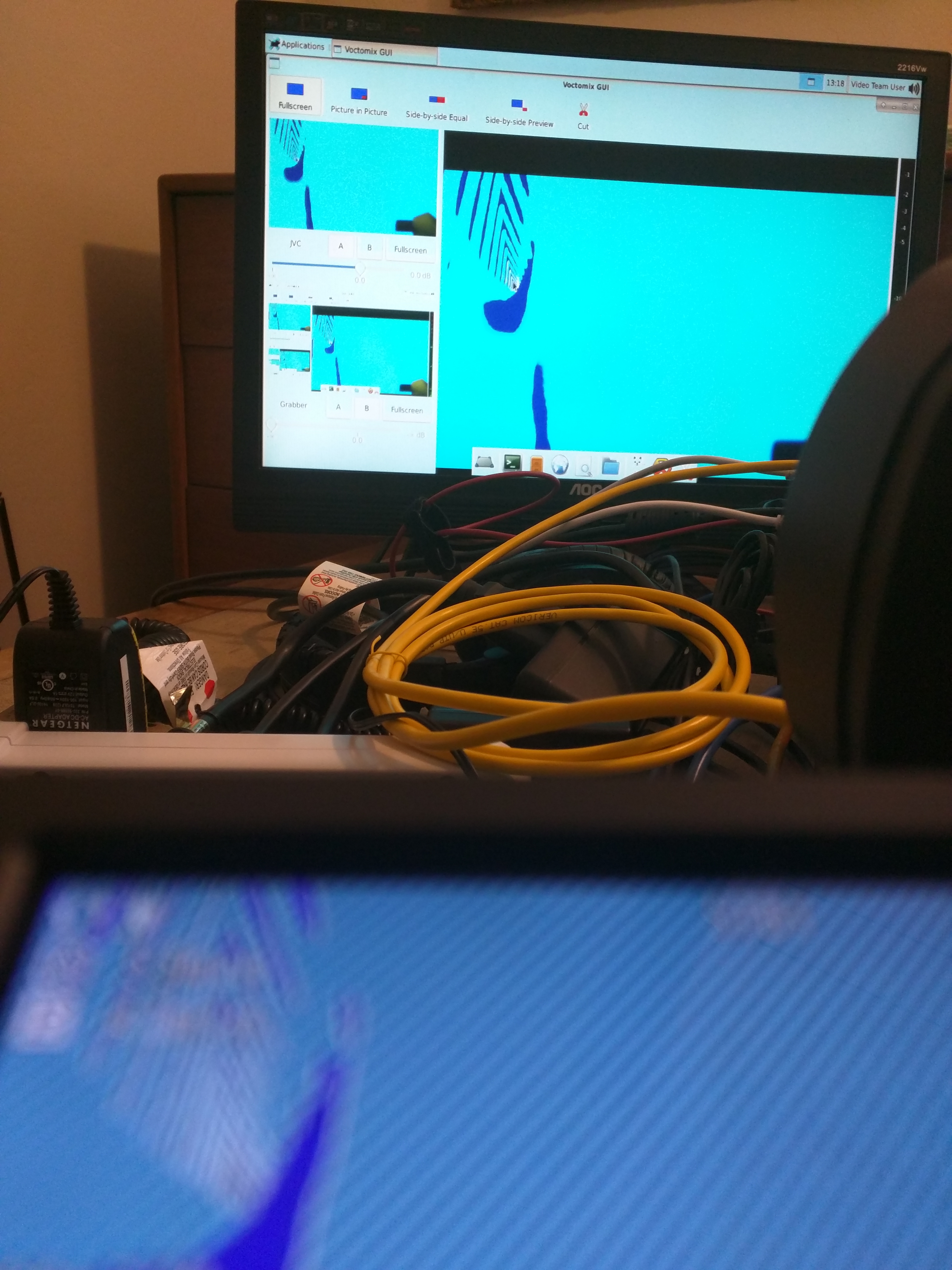

| * CarlFK[m] uploaded an image: VectorImage_2017-12-01_011821.jpg (3633KB) <https://matrix.org/_matrix/media/v1/download/matrix.org/kYNmhMTAcHnWWUgDsQcdQXNv> | 21:20 | |
| CarlFK[m] | vocto in vocto. | 21:21 |
| *** CarlFK has quit IRC | 22:04 | |
| Kamilion | CarlFK[m]: sure | 22:49 |
| Kamilion | (he says, before looking at the clock and realizing it's quarter till three | 22:50 |
| CarlFK[m] | Rockford, exactly too late. I'm in Palo Alto and on my way to Petaluma | 22:50 |
| CarlFK[m] | Just as well, I lost track of time and had to hurry on | 22:53 |
| Kamilion | know the feeling. | 23:07 |
