| mithro | cr1901_modern: so, were are we at? I'd like to get the xmodem stuff merged | 03:04 |
|---|---|---|
| cr1901_modern | mithro: Your IRC log appears to be broken, but I was trying to find last time we talked. I said I couldn't implement SFL as you wanted (SFL doesn't really have provisions for "reading everything into a big buffer") and you said you'd take a look and we discussed. | 03:10 |
| cr1901_modern | And then we both got busy :P | 03:10 |
| cr1901_modern | mithro: In other news, been looking at qemu-litex to fix the timer bug, finish formatting flterm changes, and add quad-SPI support to litex for opsis | 03:12 |
| cr1901_modern | (none of which are done, but flterm changes take 5 minute) | 03:13 |
| mithro | We can merge xmodem before sfl, right? | 03:13 |
| cr1901_modern | mithro: Sure. I need to finish adding quad bitbang SPI support to litex first | 03:14 |
| cr1901_modern | mithro: Also disregard the "IRC logs broken" msg, I'm an idiot | 03:14 |
| cr1901_modern | mithro: Here we go: https://logs.timvideos.us/%23timvideos/%23timvideos.2017-08-24.log.html#t2017-08-24T08:54:58 | 03:16 |
| mithro | Jimmo has added xmodem to the pic firmware on the mimasv2 - I want to check that flterm and your gateware implementation are all compatible | 03:16 |
| mithro | cr1901_modern: I should have added "bug me if you don't hear back from me" :-) | 03:18 |
| cr1901_modern | well flterm works (mimasv2) to upload firmware | 03:18 |
| cr1901_modern | mithro: That's fair/my oversight | 03:19 |
| cr1901_modern | I kinda wish I got to modify my lib for PIC tho :P (maybe I still might after this is done) | 03:19 |
| mithro | Does Minicom / tetraterm (or what ever is used on windows) also work? | 03:20 |
| cr1901_modern | didn't try... please wait two mins | 03:21 |
| mithro | Oh, and the python xmodem library | 03:22 |
| cr1901_modern | mithro: The transfer itself works fine in Tera term but the terminal hangs afterward... checking now | 03:28 |
| cr1901_modern | Actually come to think of it, lots of characters are garbled (but the xfer succeeded). I think this was the reason I used Linux in the first place to access the mimasv2 board. The Windows driver is just screwy | 03:30 |
| cr1901_modern | mithro: This is a known issue, btw https://community.numato.com/threads/numato-mimas-v2-serial-console-responses-dropping-chars.116/ | 03:33 |
| cr1901_modern | mithro: I happen to have a PIC programmer to upgrade the PIC firmware if necessary | 03:34 |
| mithro | By garbled - do you mean the transmitted data that was written broken? | 03:35 |
| cr1901_modern | mithro: The transfer succeeded, so the transmitted data wasn't written broken. But I can't tell whether the code after the transfer succeeded or not b/c the terminal hung on me afterwards. >> | 03:38 |
| cr1901_modern | mithro: Since then, I've reset the device twice, and I've gotten to the HDMI2USB prompt both times successfully | 03:39 |
| cr1901_modern | mithro: By garbled, I mean THIS is what I see upon pressing reset: https://imgur.com/a/va4YJ | 03:39 |
| tpb | Title: Imgur: The most awesome images on the Internet (at imgur.com) | 03:39 |
| cr1901_modern | Just now, I disconnected the mimasv2 from Windows, and reconnected it to the Beagle. This is what I see when I press reset on mimasv2: http://imgur.com/a/AeY5P | 03:42 |
| tpb | Title: Imgur: The most awesome images on the Internet (at imgur.com) | 03:42 |

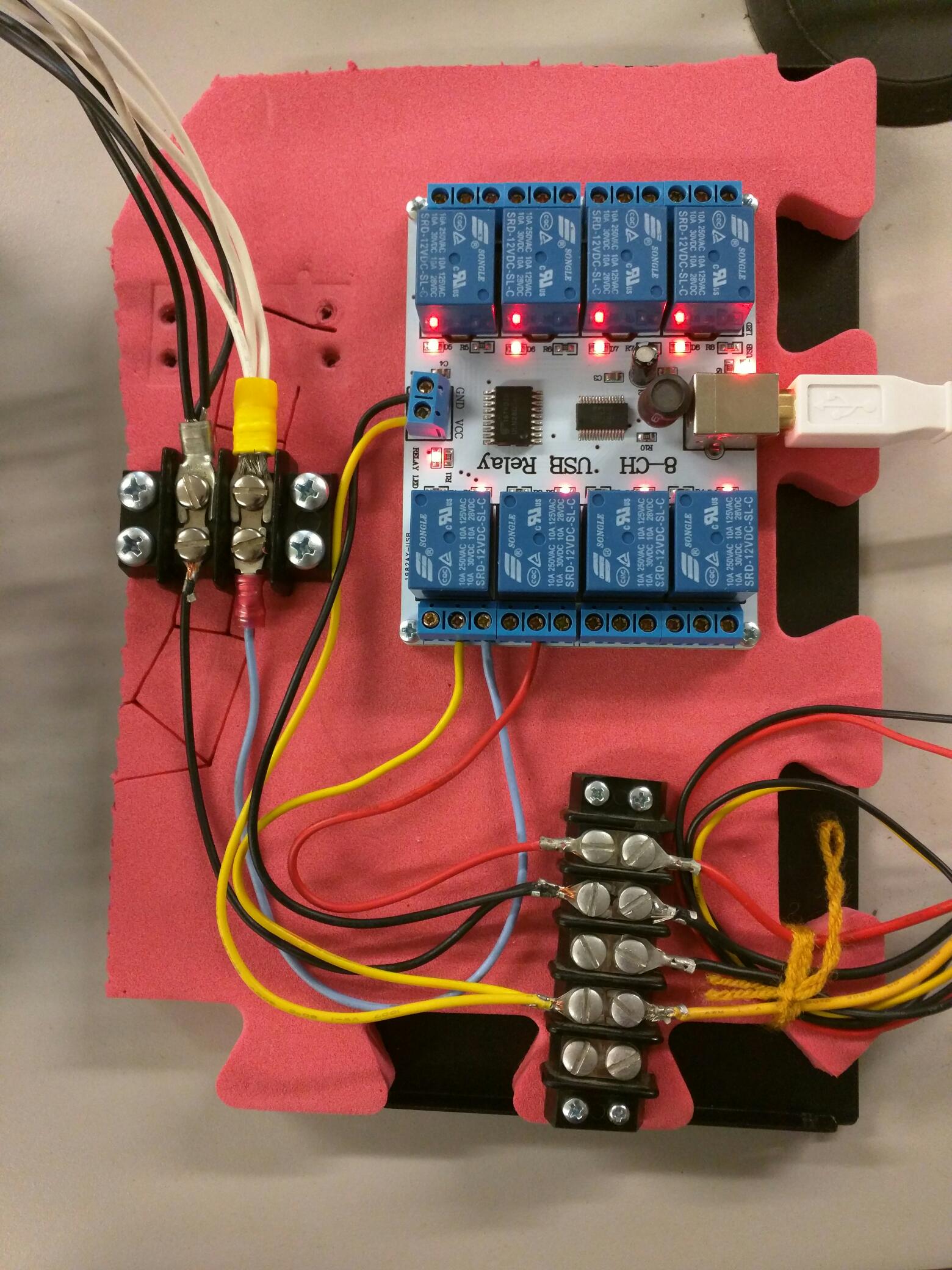

| * CarlFK[m] uploaded an image: file1504669289734.jpg (380KB) <https://matrix.org/_matrix/media/v1/download/matrix.org/JqQjBPEWrWbwSmHewaRvHErq> | 03:42 | |
| CarlFK[m] | mithro: v2. It defaults to on | 03:43 |
| mithro | CarlFK[m]: that kind of scares me a little... | 03:43 |
| mithro | cr1901_modern: I think Jim's firmware for the pic should fix this | 03:44 |
| cr1901_modern | mithro: How do I flash it the first time? Does it require an actual PIC programmer? | 03:49 |
| cr1901_modern | mithro: Firmware update from tera term was successful w/ default PIC firmware | 03:49 |
| mithro | cr1901_modern: https://github.com/jimmo/numato-mimasv2-pic-firmware#flashing | 03:50 |
| tpb | Title: GitHub - jimmo/numato-mimasv2-pic-firmware (at github.com) | 03:50 |
| mithro | Only need a pic programmer if you screw it up... | 03:50 |
| cr1901_modern | where's the xmodem code for it? | 03:51 |
| mithro | Dunno if Jim has pushed that yet... | 03:53 |
| cr1901_modern | mithro: Also, just to reiterate; firmware update succeeded from Windows Tera Term. This tells me that the garbled chars are on the receiver end | 03:54 |
| mithro | Okay | 03:54 |
| mithro | Currently you need this hack with his firmware - https://github.com/timvideos/HDMI2USB-litex-firmware/blob/master/targets/mimasv2/base.py#L200 | 03:55 |
| tpb | Title: HDMI2USB-litex-firmware/base.py at master · timvideos/HDMI2USB-litex-firmware · GitHub (at github.com) | 03:55 |
| mithro | And nobody has tested under windows at all | 03:55 |
| cr1901_modern | ick- Jim can only build his code w/ the demo compiler :/? | 03:56 |
| cr1901_modern | mithro: Does numato provide a download of the original f/w anywhere, just in case? | 04:10 |
| cr1901_modern | mithro: Answer to the above appears to be "no"... ah well http://langster1980.blogspot.com/2016/06/linux-on-mimas-v2.html | 04:28 |
| *** CarlFK has joined #timvideos | 05:05 | |
| *** ChanServ sets mode: +v CarlFK | 05:05 | |
| *** CarlFK has quit IRC | 05:12 | |
| mithro | cr1901_modern: I assume you should be asleep | 05:49 |
| mithro | cr1901_modern: I'm pretty sure there are precompiled firmware on that repo | 05:49 |
| mithro | John_K: I left some comments on https://github.com/timvideos/HDMI2USB-mode-switch/pull/67 | 06:00 |
| tpb | Title: Replace shelling out to fxload with CypressFX.FX2 calls by John-K · Pull Request #67 · timvideos/HDMI2USB-mode-switch · GitHub (at github.com) | 06:00 |
| mithro | Ishan_Bansal: I'm doing a code review for your pull request now | 06:04 |
| mithro | Ishan_Bansal: Understand you have exams at the moment so will be slow to respond to the comments | 06:04 |
| cr1901_modern | mithro: No, not yet, but I'm about to sleep | 06:27 |
| cr1901_modern | mithro: I meant the original firmware provided by Numato | 06:28 |
| mithro | cr1901_modern: I'm sure we had a copy somewhere | 06:30 |
| mithro | cr1901_modern: Let me get back to you | 06:30 |
| mithro | Ishan_Bansal: Just some comment and formattting fixes and we can merge that pull request! | 06:33 |
| *** CarlFK has joined #timvideos | 07:14 | |
| *** ChanServ sets mode: +v CarlFK | 07:14 | |
| *** CarlFK has quit IRC | 07:15 | |
| Ishan_Bansal | mithro : I will try to solve the issues before tomorrow's night. | 07:22 |
| mithro | Ishan_Bansal: Hopefully it won't take much effort | 07:22 |
| *** CarlFK has joined #timvideos | 07:48 | |
| *** ChanServ sets mode: +v CarlFK | 07:48 | |
| *** CarlFK has quit IRC | 07:49 | |
| *** rohitksingh_work has joined #timvideos | 08:30 | |
| *** ChanServ sets mode: +v thaytan_ | 10:33 | |
| *** thaytan_ is now known as thaytan | 10:33 | |
| *** rohitksingh_wor1 has joined #timvideos | 12:14 | |
| *** rohitksingh_work has quit IRC | 12:17 | |
| *** rohitksingh_wor1 has quit IRC | 12:33 | |
| *** rohitksingh has joined #timvideos | 13:07 | |
| *** nueces has joined #timvideos | 13:30 | |
| *** CarlFK has joined #timvideos | 17:22 | |
| *** ChanServ sets mode: +v CarlFK | 17:22 | |
| *** rohitksingh has quit IRC | 17:35 | |
| *** valessio has joined #timvideos | 17:56 | |
| *** valessio has quit IRC | 20:05 | |
| *** puck has quit IRC | 20:40 | |
| *** puck has joined #timvideos | 20:44 | |
| *** nueces has quit IRC | 22:25 | |
| *** CarlFK has quit IRC | 23:46 | |
